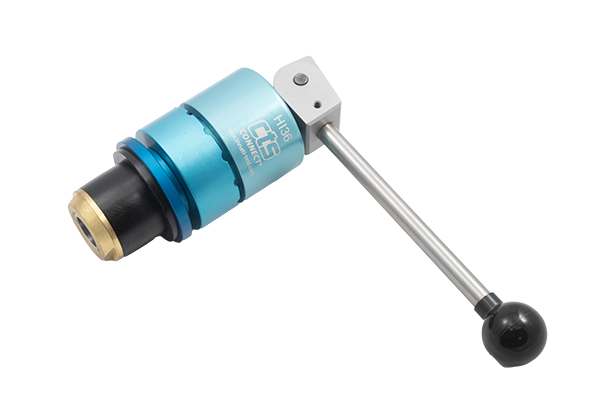

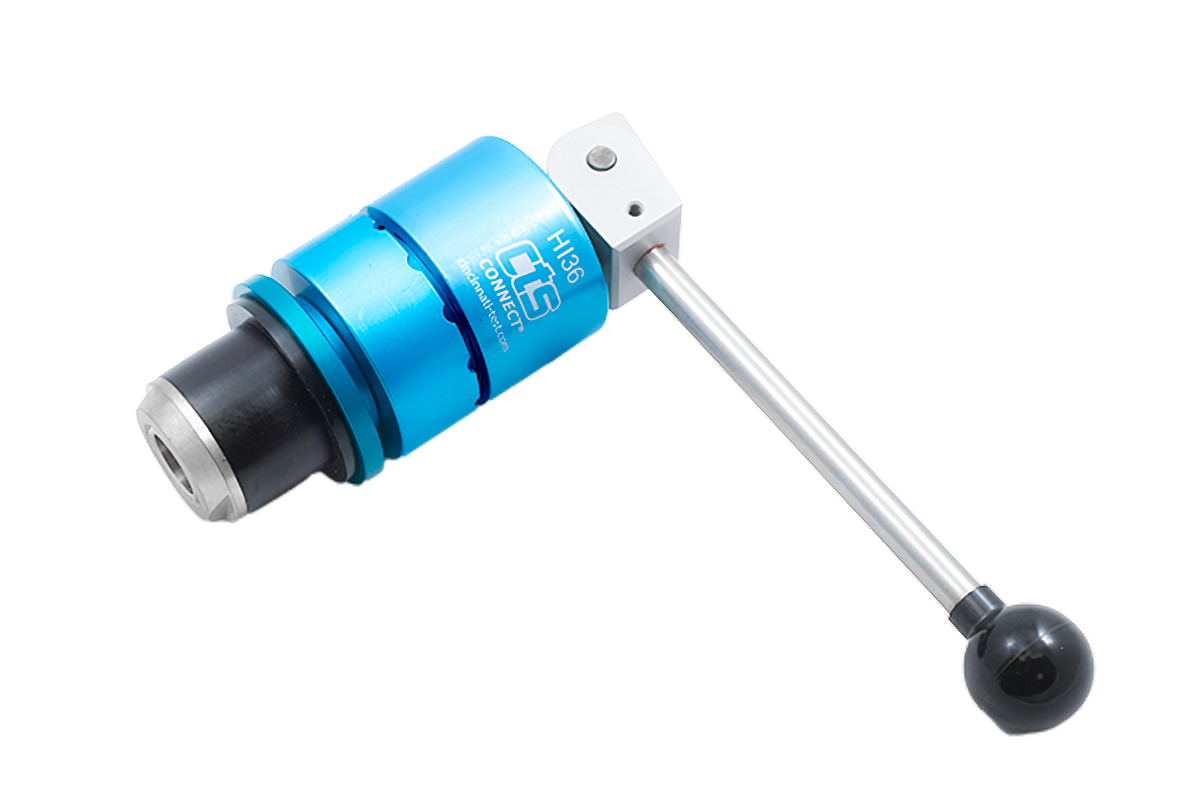

The HI36-SAE-2250 manually actuated connector is designed with a "dead head" seal with no fill port and seals onto the inside diameter (ID) of a 2-1/4" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Inside Diameter
Body Style: Plug Style
Seal Set: HI36-SAE-2250
Thread Size: 2-1/4 in. SAE
Seal Type: 55 Durometer Rubberized Urethane - Black
Number of Seals: 1
Bore Type: Threaded
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 120 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$705
/
