CTSC-003945

CTSC-003945

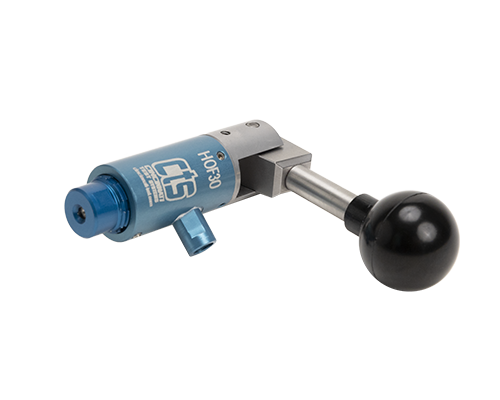

The HOF30-AA manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.030" to 0.050" (0.8 mm to 1.3 mm).

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port
Seal Set: HOF30-AA
Seal Range: 0.03-0.05 in. (0.8-1.3 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/16 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$755
/
