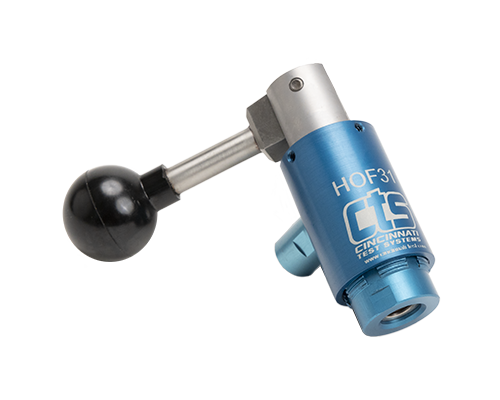

The HOF31-AF manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.420" to 0.510" (10.7 mm to 13 mm).

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port
Seal Set: HOF31-AF
Seal Range: 0.42-0.51 in. (10.7-13 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 1
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$820
/
