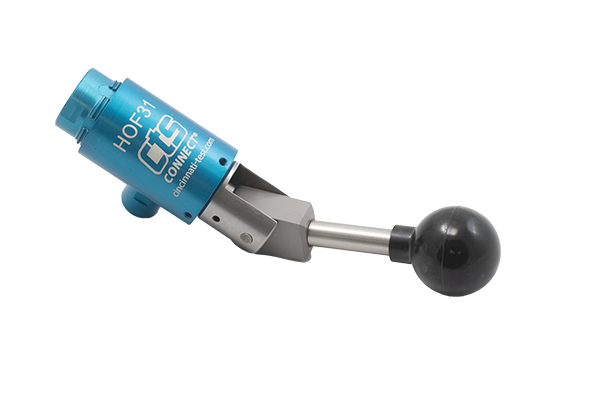

The HOF31-SAE-0375 manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a 3/8" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port
Seal Set: HOF31-SAE-0375
Thread Size: 3/8 in. SAE
Seal Type: 30 Durometer FF - Yellow
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$820
/
