CTSC-004010

CTSC-004010

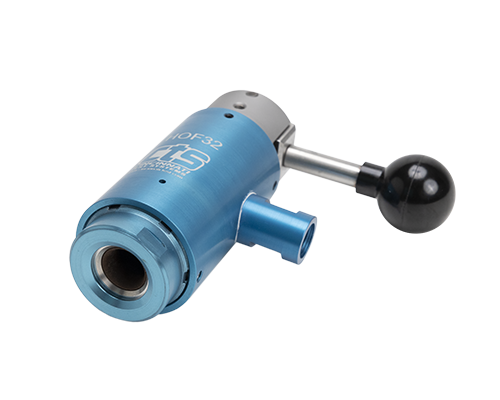

The HOF32-AH manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 0.750" to 0.827" (19.1 mm to 21 mm).

CTSConnect:HOF32-AH
Seal & Product Type:OD Manual Seal w/ Fill Port
Sealing Range: 0.75-0.827 in. (19.1-21 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$970
/
