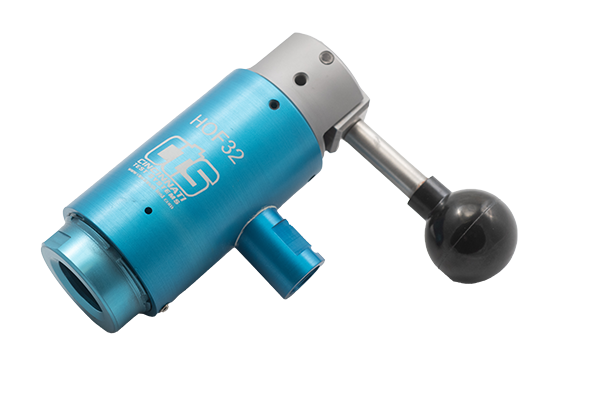

The HOF32-SAE-0562 manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a 9/16" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port
Seal Set: HOF32-SAE-0562
Thread Size: 9/16 in. SAE
Seal Type: 30 Durometer FF - Yellow
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$970
/
