CTSC-004047

CTSC-004047

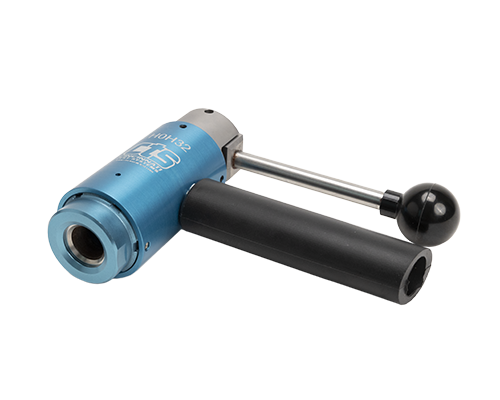

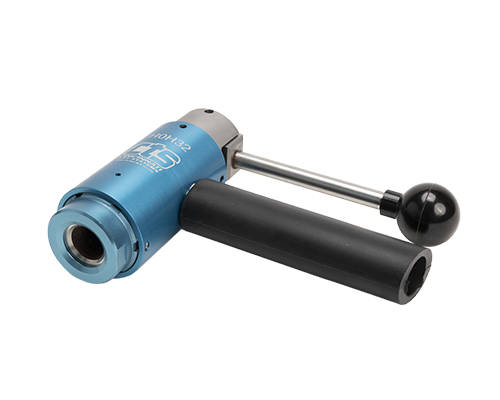

The HOH32-SAE-0687 manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the outside diameter (OD) of an 11/16" SAE threaded fitting.

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port & Handle
Seal Set: HOH32-SAE-0687
Thread Size: 11/16 in. SAE
Seal Type: 30 Durometer FF - Yellow
Number of Seals: 1
Bore Type: Threaded
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$1,075
/
