CTSC-004059

CTSC-004059

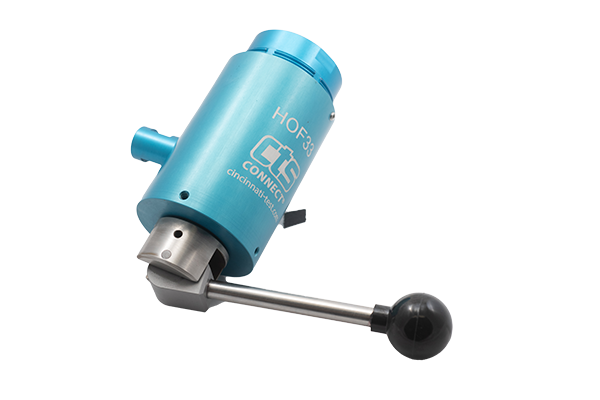

The HOF33 Body Only (no main seal kit) is a manually actuated connector designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a port, tube, or fitting and is available in a variety of sealing ranges from 0.787" to 1.510" (20 mm to 38.4 mm). Choose the correct main seal kit range for your application.

CTS Connect
Accessory: Body Only
Method: Manual
Type: Outside Diameter
Body Style: Fill Port
Body Size: HOF33
Seal Range: 0.787-1.51 in. (20-38.4 mm)
Test Air Connection: 1/4 in. NPT
Pilot Air Connection:
Construction Materials: Aluminum
Test pressure:Vacuum to 500 psig
Note: CTS suggests a fixed position support for high pressure testing.
$1,011
/
