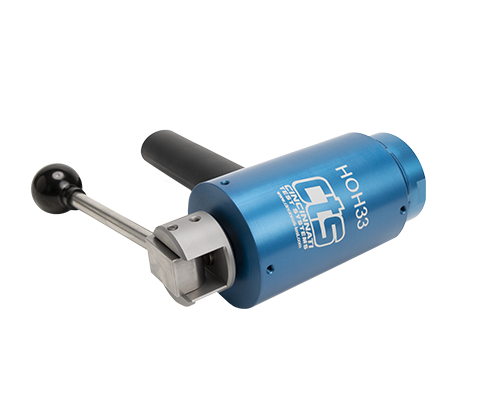

The HOH33-AH manually actuated connector is designed with an NPT-threaded fill port that features a comfort-grip handle and seals onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.181" to 1.260" (30 mm to 32 mm).

CTS Connect
Method: Manual
Type: Outside Diameter
Body Style: Fill Port & Handle
Seal Set: HOH33-AH
Seal Range: 1.181-1.26 in. (30-32 mm)
Seal Type: 50 Durometer Silicone - Brown
Number of Seals: 2
Bore Type: Smooth
Test Air Connection: 1/4 in. NPT
Construction Materials: Aluminum, stainless steel
Test pressure:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$1,220
/
