CTSC-004084

CTSC-004084

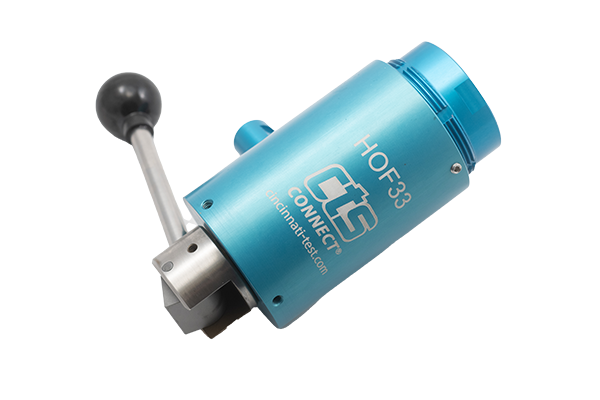

The HOF33-AJ manually actuated connector is designed with an NPT-threaded fill port and seals onto the outside diameter (OD) of a port, tube, or fitting, offering a sealing range from 1.260" to 1.339" (32 mm to 34 mm).

CTSConnect:HOF33-AJ
Seal & Product Type:OD Manual Seal w/ Fill Port
Sealing Range: 1.26-1.339 in. (32-34 mm)
Seal Material:Standard Grade
Test pressures:Vacuum to 500 psig
Note: CTS suggests using a tether retention for high pressure testing on smooth surfaces.
$1,115
/
